Trike Passenger Harness

Price: $356.00

Ask a question about this product

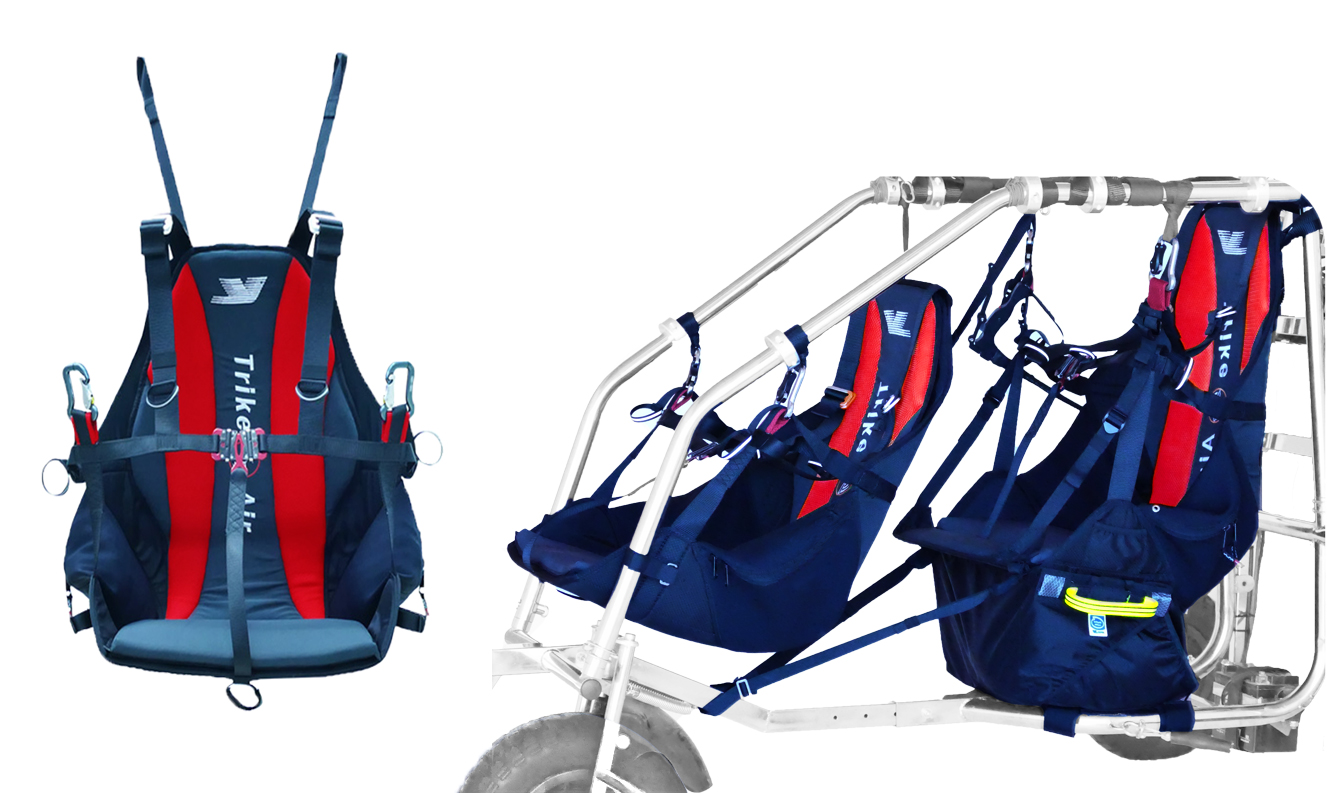

Trike Passenger Harness


An engineering masterpiece is the one that simply works. The Trike Pilot-Passenger Harness Set, is exactly that – a simple, straight-forward solution for any trike.
Comfortable and safe, this set, does the job in an easy to use, efficient way. Elegant in its simplicity the Trike Pilot-Passenger harnesses will answer all your needs.;

UNIVERSAL in their design the Pilot-Passenger Harnesses will fit most trikes in use today.

The Pilot-Passenger Harnesses are designed to be used as part of an integrated set. Synergized to work perfectly together.

Of course each harness can be used on its own, combined they will provide the ultimate solution.

Fly Apco - KISS the pilot!

Wikipedia: "KISS" is an acronym for - Keep It Simple, Stupid

Like the matching Pilot Harness, the Passenger Harness is highly comfortable, safe and extremely simple for operation.

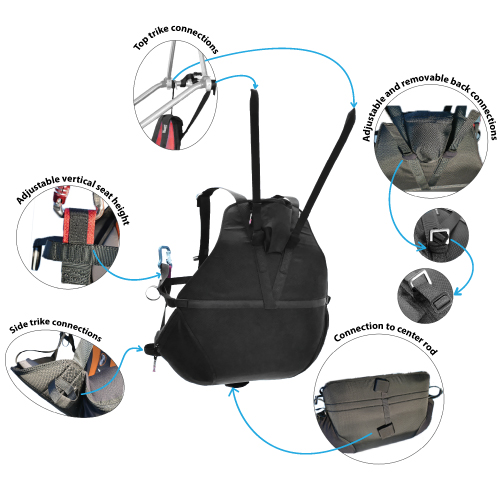

Universal design - the Passenger Harness has multiple connection points to connect to the trike's frame, allowing compatability with almost any trike.

Safe - A single T-type buckle secures the passenger with minimum amount of connections. allowing for quick "No Forget" set up.

Comfort - Removable one piece seat and back cushion insures passenger comfort on the longest flights.
2 Double Side pockets envelop the passenger for added support and allow ample space with in flight accessibility.

Sizing - Full adjustability of all angles allows quick adjustment of the harness to any passenger.

Strong - Wide 40 mm polyester webbings are used to secure the passenger to the harness and the harness to the frame.

Getting in and out of harness is extremely easy. The Passenger Harness integrates together perfectly with the matching Pilot Harness but will also be perfect for most single seater trikes.

**Custom branding, colors and your logo are available for bulk orders**

Click to see 3D View

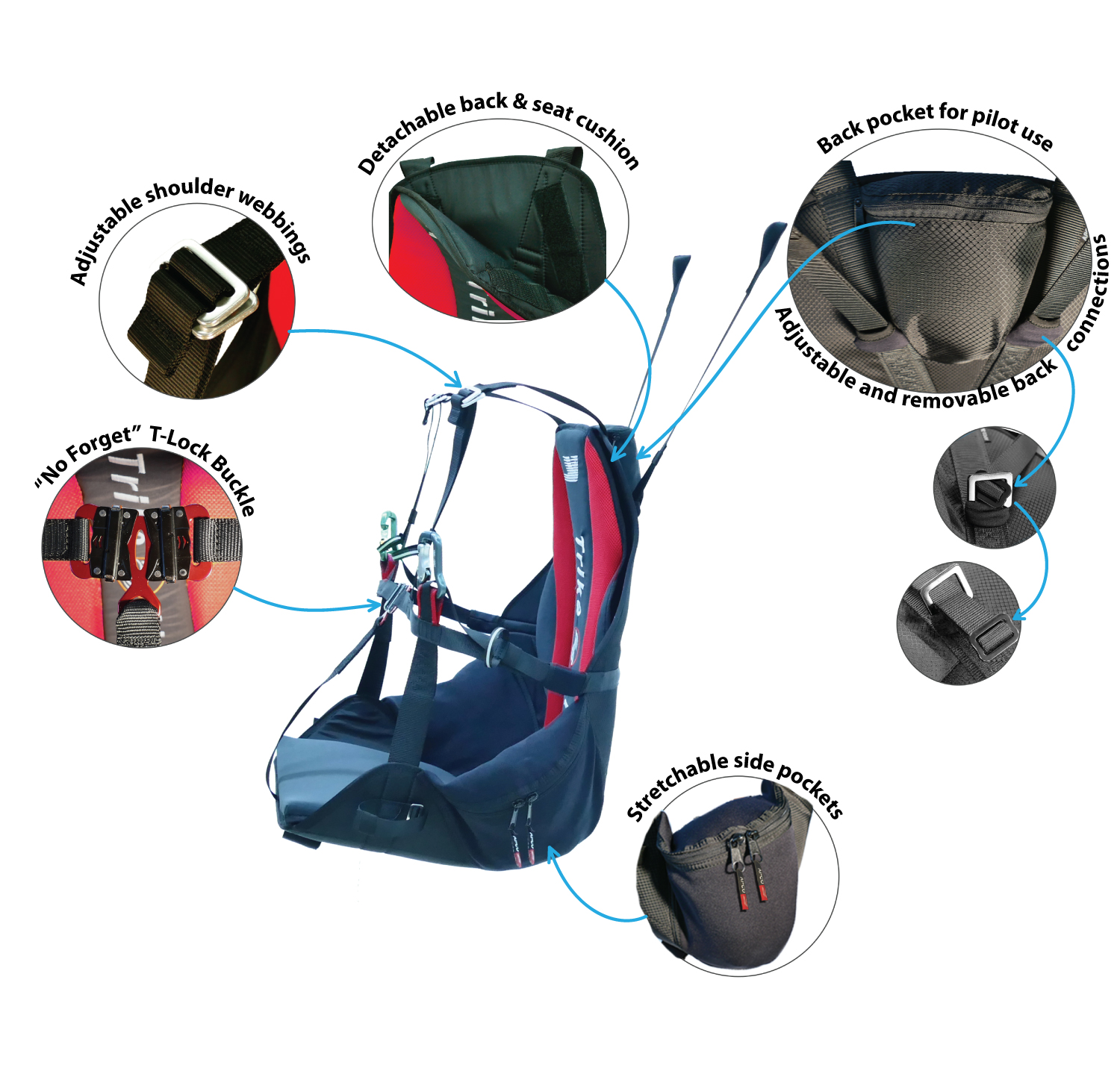

Passenger Harness Features
Click to Enlarge


  • Only 1.4 kg. without seatplate and airfoam (add 400gr. for plywood seatplate)
  • Super simple one click passenger buckling with T-lock center buckle.
  • Shoulder support length, quick adjustment.
  • Back angle quick adjustment.
  • Rear pocket for use of the pilot as a front pocket.
  • Loop and slide mechanism for quick adjustment of seating angle and quick disconnect of the harness from the trike.
  • Seat and back cushion – removable and (hand) washable – one piece seat and back cushion for maximum comfort in the air.
  • Side pockets – on both sides with easy in-flight access.
  • 7075 T6 Aluminum aviation grade hardware
  • High tenacity, diamond shape Nylon fabric, for durability and aesthetics.
  • Universal – multiple connection points to accommodate almost all trikes on the market.
  • + much, much more......

Passenger Harness Features
Click to Enlarge


Weight of Passenger Harness - 1.4 [Kg]
Standard seatplate - 0.4 [Kg]
One piece back and seat cushion - 0.3 [Kg]
Passenger Harness Total - 2.1 [Kg]



Trike Passenger Harness, available in Black with contrasting color design - Orange or Red. (delivered according to stock)


The Passenger harness is available in "one size fits all"
49250 - Passenger Harness
The Passenger Harness is firmly secured inside the trikes frame to use the cage as protection.

Price Includes:
  • Passenger Harness
  • seatplate and removable one piece back and seat cushion (does not include Carabiners)
